Pettersson M500-384 USB Ultrasound Microphone

About this product

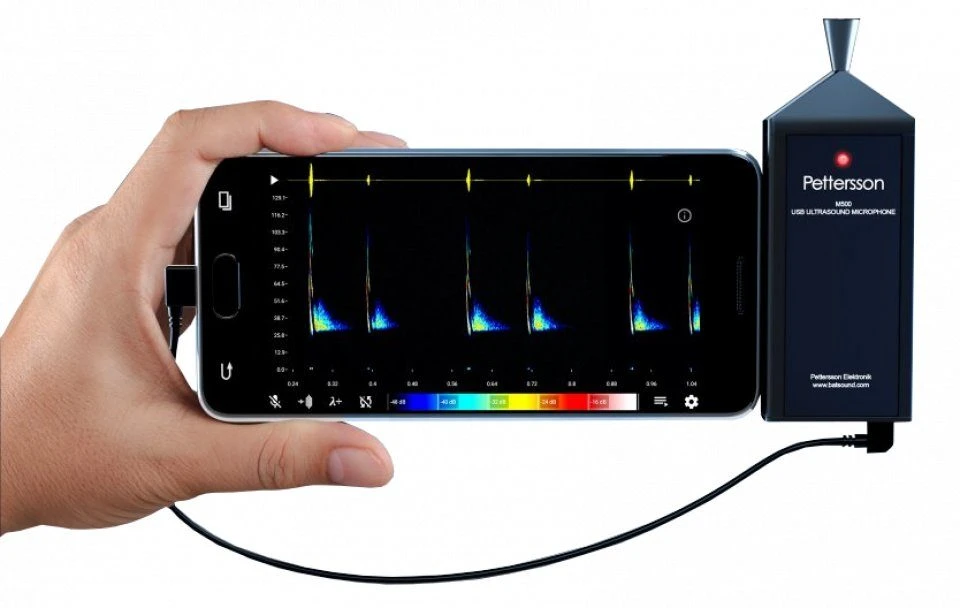

The Pettersson M500-384 USB Ultrasound Microphone allows to you to make high quality, full spectrum recordings of bat calls with a wide range of computers, tablets and smart phones. Like the original M500 the M500-384 is housed in a slim, durable aluminium case and uses the same advanced electret microphone technology as the D500X. It is supplied with a removable directional horn, so that recordings can be directional or omnidirectional to increase flexibility.

The M500-384 is an excellent choice for making ultrasound recordings from your smart phone and can be used with a range of operating systems including: Android, Linux (Ubuntu), OS X, iOS and Windows. Similarly you can use any sound recording software that supports recording at 384kHz, for more information on recording software please consult the .

The M500-384 is supplied with a mini-USB cable. In order to connect the M500-384 to a device with a micro USB jack an adapter with an OTG USB micro plug is required.

For use with iOS, the M500-384 requires a lightning to USB camera adapter and an app such as Ultrasonic Analyzer.



Specification

* Microphone: Advanced electret
* Sampling frequency: 384 kHz
* ADC resolution: 16 bits
* Frequency range: 10 kHz – 160 kHz
* Interface: USB 2.0, full speed, OTG/host
* Anti-aliasing filter: 8th order, 160 kHz
* Size: 43 x 114 x 13 mm (incl microphone horn)
* Weight: 60 g
* Power: USB bus powered
