Moth Trap Inverter

About this product

Please note this inverter is not suitable for use with moth traps which use fluorescent bulbs.

The Moth Trap Inverter Kit is an ideal solution for converting your 230V moth trap into a battery-powered device. It includes an inverter which converts 12V to 240V allowing you to power your moth trap using a 12V battery. The inverter is available with an outdoor enclosure which offers strong, weatherproof and portable protection for the inverter.

The inverter boasts over 85% efficiency, low/over voltage input protection, short circuit, overload and overheat protection. The case is made from tough thermoplastic and its strong clamps keep your cables secure.

The Moth Trap Inverter Kit is compatible with the NHBS Moth Trap and can be purchased as the NHBS Moth Trap with Inverter Kit which includes both the NHBS Moth Trap and Moth Trap Inverter Kit.

Contents

• Inverter for Moth Trap Electrics
• Outdoor Enclosure for Moth Trap Electrics



Specification

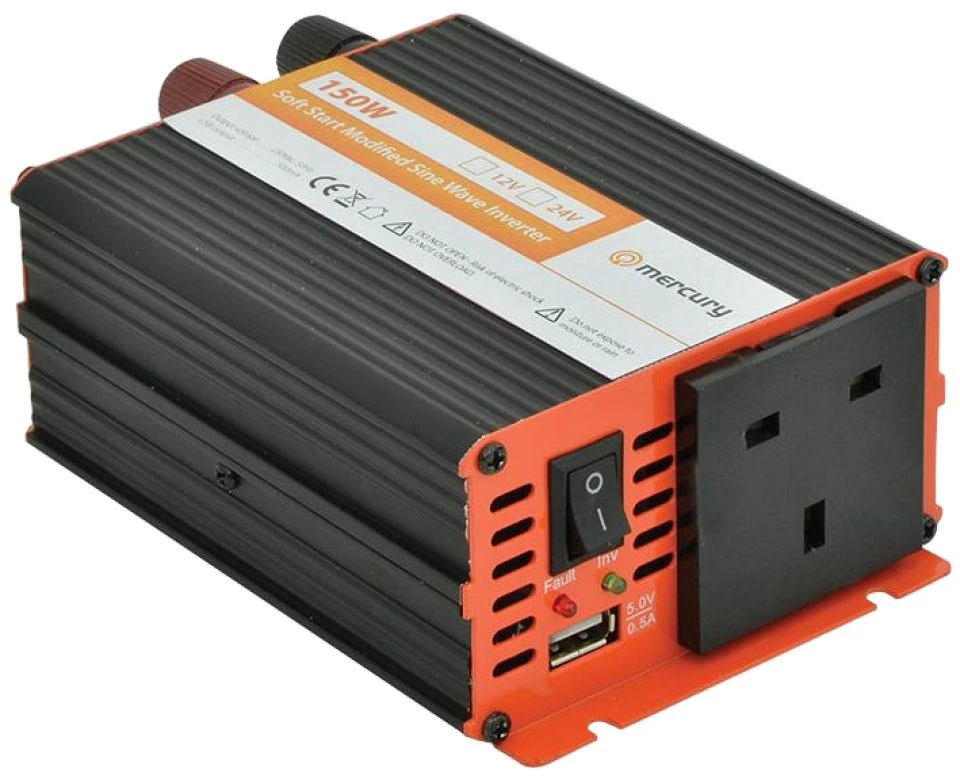

Inverter

• Power Inverter Type: Modified Sine Wave
• Input Voltage: 12VDC (from battery)
• Output Voltage: 230VAC
• Output Power: 150W
• Efficiency: Over 85%
• Soft Start: Yes (minimizes inverter shutdown when using large inductive loads)
• Input Protection: Low/Over Voltage Protection
• Safety Protections: Short Circuit, Overload, and Overheat Protection
• USB Port: Built-in 500mA USB Socket
• Fault Indicator: LED and Siren
• No Load Current: <-999A
• Cable Type: Ring End
• USB Output Current: 0.5A
• No. of Outputs: 1 Output
• Length: 160mm
• Width: 103mm
• Height: 55mm
• Weight (kg): 0.85

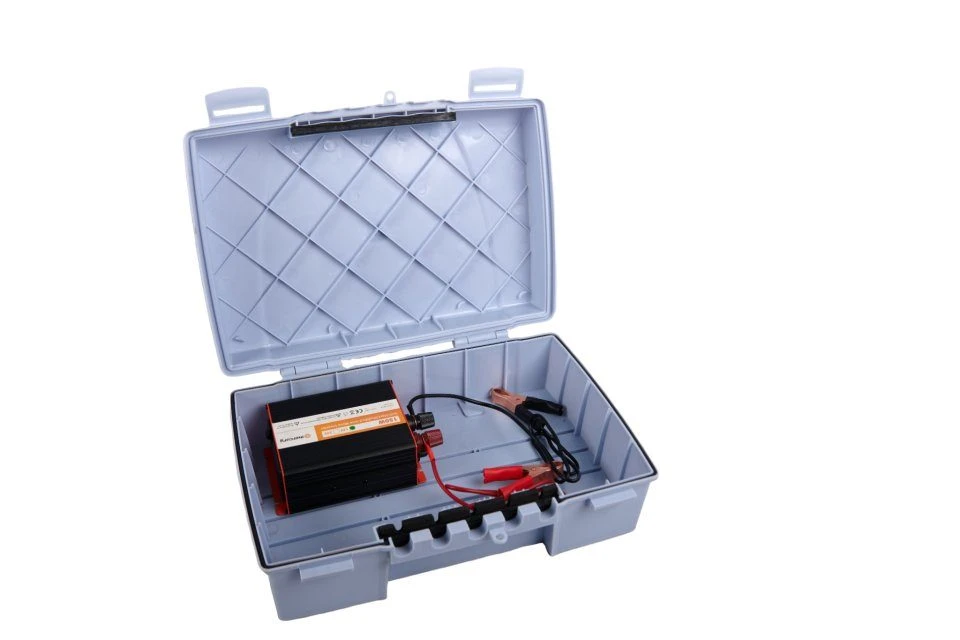

Outdoor Enclosure

• Security Feature: Enclosure can be padlocked for added security
• Cable Entry Points: Cable retaining strip for safe cable alignment
• Construction Material: Tough, thermoplastic
• External Height: 120mm
• External Width: 355mm
• External Depth: 265mm
• IP Rating: IP55
• ​Body Colour: Grey
