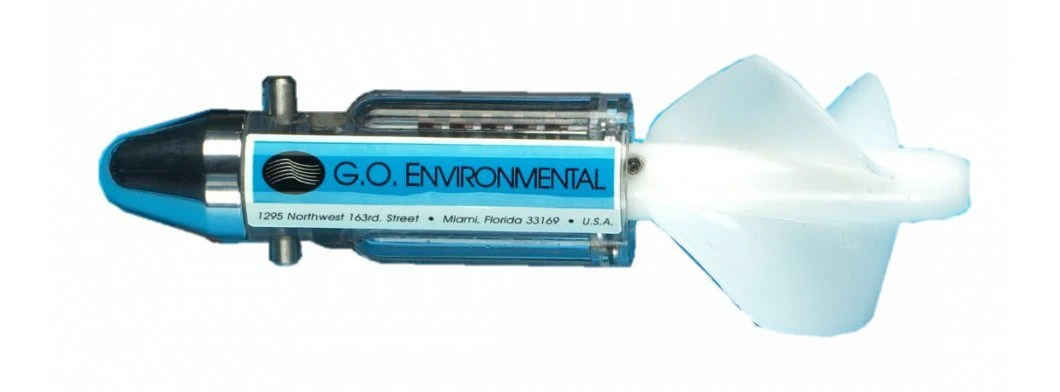

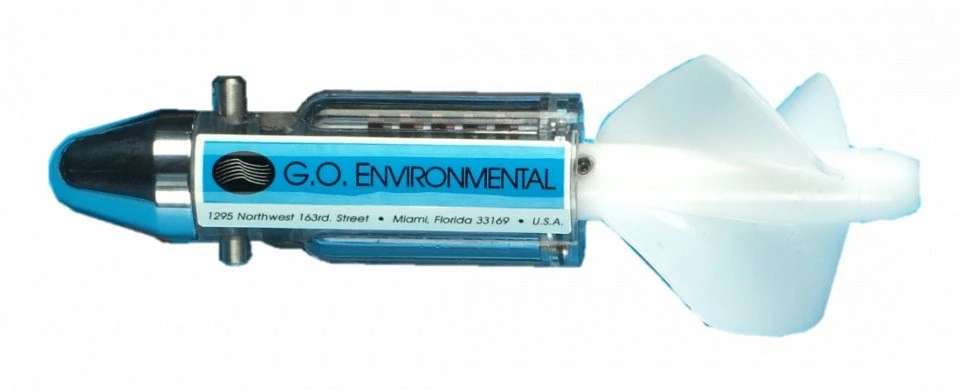

Mechanical Flow Meter

About this product

Mechanical flowmeters are ideal for general purpose flow measurements in a range of aquatic habitats. Incorporating a precision moulded rotor connected to a six-digit counter, each revolution of the impeller is registered on the mechanical display. The number of revolutions per unit of time can be translated into stream flow velocity using a conversion chart.

Available with either a standard or low-speed rotor. Models are also available with a 1-way clutch so that the rotor can only work in one direction.

The flow meter can be attached to our  or  plankton nets. Please contact Customer Services ([email protected] or +44 (0)1803 865913) for more information or custom requests.



Specification

Materials:

• Celcon rotor
• Nickel-plated brass nose cone
• Polycarbonate body
• Armaloyed stainless steel main rotor and idler gear shafts

Dimensions:

• Total length: 213mm
• Standard rotor diameter: 69.8mm
• Low-speed rotor diameter: 165mm
• Weight in Air: 225g
• Weight in Water: 113g
• Depth Rating: Unlimited (free flooding)
