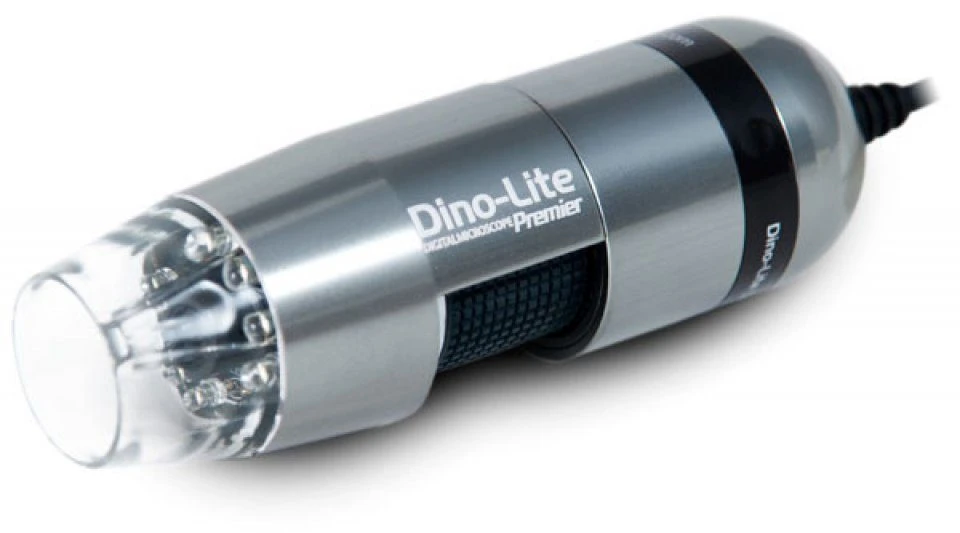

AM7013MT Dino-Lite 5M Pixel USB Digital Microscope

About this product

The Dino-Lite Pro 5M pixel range provides 5M pixel imaging (up to 2592 x 1944) and introduces the highest resolution Dino-Lite to date. The high-performance image sensor, excellent optics, low-noise electronic design and robust metal housing ensure industry-leading quality and performance.

As with all Dino-Lite microscopes the fully featured DinoCapture 2.0 software is included, featuring comprehensive software measurement functionality with calibration. A feature unique to the 5M pixel models is the innovative 2x magnification mode (available when operating at 1.3M pixel resolution). This mode provides an additional 2x magnification factor and effectively doubles the magnification range of the device for additional flexibility.

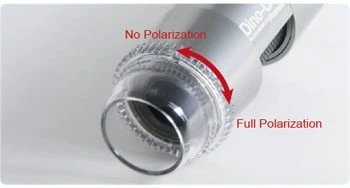

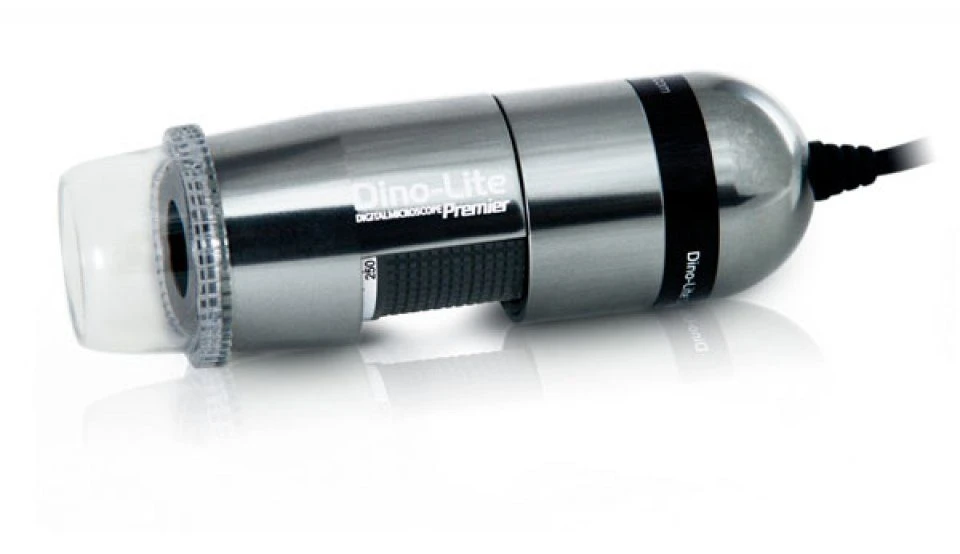

The AM7013MZT model (pictured second) features an adjustable polarizer allowing superior surface detail to be captured on reflective surfaces.

For operation at the full 2592×1944 resolution an MJPEG Codec is required (not supplied). For more information regarding this, please download .

Features:
– 5M pixel image sensor
– robust aluminium alloy housing
– adjustable magnification 10x-50x & 200x (20x-100x & 400x when operated in 2x 1.3M pixel mode)
– USB2.0 interface
– Microtouch snapshot
– 8 white-light LED illumination with software on/off
– DinoCapture 2.0 / DinoXcope software with measurement and calibration functionality
