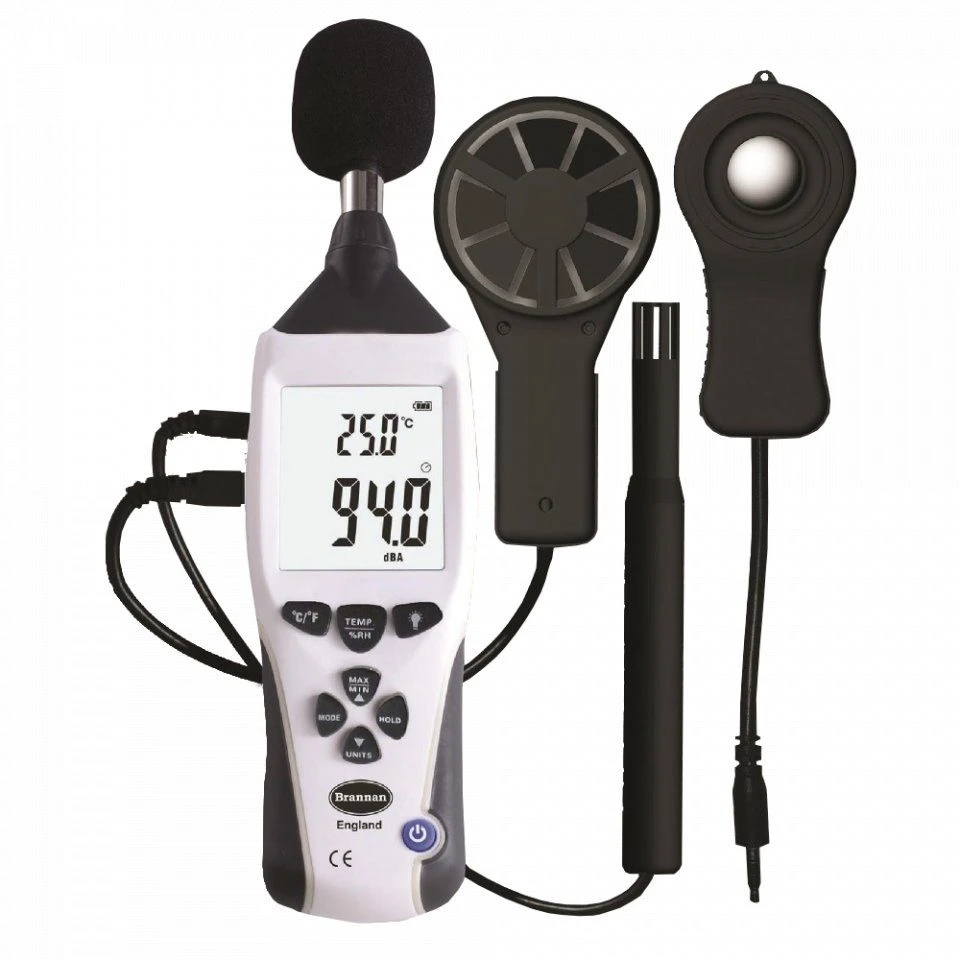

5-in-1 Environmental Meter

About this product

The 5-in-1 Environmental Meter is an excellent multi-purpose meter, combining the functions of a sound level meter, light meter, anemometer, humidity meter and thermometer. It is ideal for collecting a range of environmental data and is suitable for use indoors and outdoors. A backlit LCD screen shows current, maximum and minimum readings and also has a data-hold function.

The meter is powered by a 9V battery (included) which will last for approximately 30 hours. To optimise battery life the meter will automatically power off after 15 minutes of inactivity, and a low battery warning indicator lets you know when power is running low.

The meter and all components are all supplied in a robust carry case.

Includes:
* Meter
* Temperature and humidity probe
* Anemo-probe
* Light detector
* Windscreen
* 9V battery
* Plastic carry case



Specification

Sound Level
* Applied standard: IEC61672-1 CLASS2
* Accuracy: ±2.0dB
* Display: Four digits
* Resolution: 0.1dB
* Frequency response: 31.5Hz – 8kHz
* Measurement range:  Auto 35dB – 130dB
* Frequency weighting: dBA
* Microphone:  ½” electric condenser microphone

Light
* Measuring range: 0 Lux – 200K Lux, 0Fc – 20KFc
* Spectral response: CIE photopic (CIE human eye response curve)
* Spectral accuracy: CIE Vλfunction f1’≦6%
* Cosine response: f2’≦2%
* Accuracy: ±4% rdg ±0.5%f.s. (10,000Lux)
* Photo detector: One silicon photo diode with filter

Air velocity
* Air velocity range: 0.5m/s – 30.0m/s
* Air velocity accuracy: ±3%
* Measurement units: m/s, km/h, ft/min, knots, Mph

Temperature
* Measurement range: -40 – 70℃ (-40 – 158℉)
* Accuracy ±2.0℃,±3.6℉
* Measurement units: ℃/℉
* Resolution: 0.1

Humidity
* Measurement range: 10 – 95%RH
* Accuracy: ±5RH%
* Resolution: 0.1

* Data update: 1 time/sec
* Maximum value: MAX
* Minimum value: MIN
* Data Hold: HOLD
* Auto power off: After approx. 15 minutes of inactivity
* Power supply: 1 x 9V battery
* Battery life: About 30 hours
* Operating condition: -20℃ – 60℃, 10％RH – 90％RH
* Storage condition: -40℃ – 60℃, 10％RH – 75％RH
* Dimensions (L x W x H): 252 x 66 x 33mm
* Weight: 568g
